Optical Transceivers for Cisco WS-C2960X-48FPD-L Switch

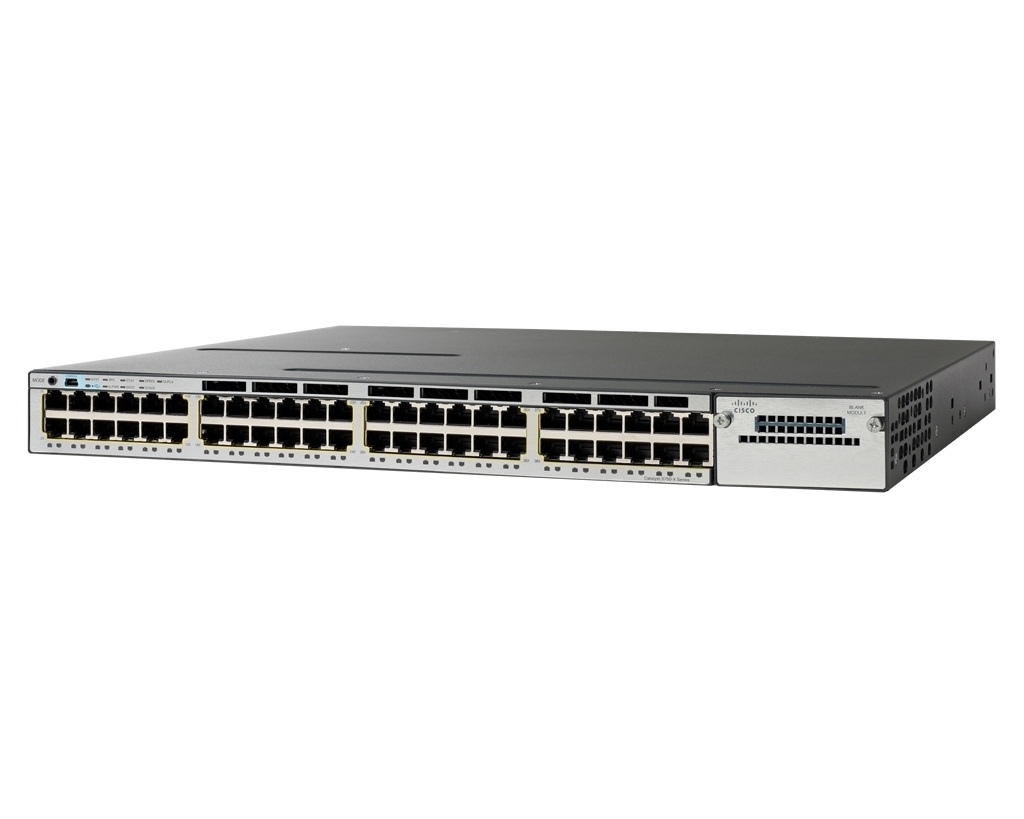

Cisco WS-C2960X-48FPD-L Switch Overview
WS-C2960X-48FPD-L belongs to the Cisco Catalyst 2960-X Series Switches; it’s an ideal product for enterprise class businesses. Cisco Catalyst 2960X series 48 ports LAN Base stackable switch is comprised of 48 x Ethernet 10/100/1000 ports with POE+ and 2 x 10G SFP+ uplink interfaces. It delivers Power over Ethernet Plus (PoE+) that supports up to 740W of PoE budget for 24 ports with 30W per port or 48 ports with 15.4W per port.
Cisco WS-C2960X-48FPD-L Switch Parameters
| Device Type | Switch - 48 ports - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 130.9 Mpps |
| Jumbo Frame Support | 9216 bytes |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Features | Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Cisco FlexStack Plus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 38.6 cm x 4.5 cm |
| Weight | 5.8 kg |
Optical Transceivers for Cisco WS-C2960X-48FPD-L Switch
Based on the SFP (optical module form factor) Gigabit Ethernet ports accommodate range SFP (optical module form factor) optical transceivers, including Cisco 10GBASE-SR, 10GBASE-LRM, 10GBASE-LR, 10GBase-ER, 10GBASE-ZR/ZW, DAC Twinax Cable. For more information on these Cisco optical transceivers, please check the following table.
| MFG Part number | Description | Price |
| SFP-H10GB-CU1M | Cisco SFP-H10GB-CU1M Compatible 10G SFP+ DAC Twinax Cable (1-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU3M | Cisco SFP-H10GB-CU3M Compatible 10G SFP+ DAC Twinax Cable (3-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU5M | Cisco SFP-H10GB-CU5M Compatible 10G SFP+ DAC Twinax Cable (5-meter, passive, SFP+ to SFP+, 24AWG) | |
| SFP-10G-SR | Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver | US$16.00 |
| SFP-10G-LRM | Cisco SFP-10G-LRM Compatible 10GBASE-LRM SFP+ 1310nm 220m DOM Transceiver | US$32.55 |
| SFP-10G-LR | Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Transceiver | US$32.55 |
| SFP-10G-ER | Cisco SFP-10G-ER Compatible 10GBase-ER SFP+ 1550nm 40km Transceiver Module | US$153.45 |
| SFP-10G-SR-S | Cisco SFP-10G-SR-S Transceiver Module Compatible 10G 10G SFP+ 850nm 300m | US$16.00 |
| SFP-10G-LR-S | Cisco SFP-10G-LR-S Transceiver Module Compatible 10G 10G SFP+ 1310nm 10km | US$32.55 |
| SFP-10G-ER-S | Cisco SFP-10G-ER-S Transceiver Module Compatible 10G 10G SFP+ 1550nm 40km | US$153.45 |
| SFP-10G-ZR | Cisco SFP-10G-ZR Compatible 10GBASE-ZR/ZW and OTU2e SFP+ 1550nm 80km DOM Transceiver | US$339.45 |
| SFP-10G-ZR-S | Cisco SFP-10G-ZR-S Transceiver Module Compatible 10G SFP+ Pluggable 1550nm 80km | US$339.45 |
| DWDM SFP+ | 10G SFP+ DWDM 40km Transceiver CH17~CH61 LC SM Duplex DDM Optical Module | US$260.40 |
| SFP-H10GB-CU1-5M | Cisco SFP-H10GB-CU1-5M Compatible 10G SFP+ DAC Twinax Cable (1.5-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU2M | Cisco SFP-H10GB-CU2M Compatible 10G SFP+ DAC Twinax Cable (2-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU2-5M | Cisco SFP-H10GB-CU2-5M Compatible 10G SFP+ DAC Twinax Cable (2.5-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-ACU7M | Cisco SFP-H10GB-ACU7M Compatible 10G SFP+ DAC Twinax Cable (7-meter, active, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-ACU10M | Cisco SFP-H10GB-ACU10M Compatible 10G SFP+ DAC Twinax Cable (10-meter, active, SFP+ to SFP+, 28AWG) | |
| SFP-10G-AOC1M | Cisco SFP-10G-AOC1M Compatible 10G SFP+ AOC (1-meter, SFP+ to SFP+) | |
| SFP-10G-AOC2M | Cisco SFP-10G-AOC2M Compatible 10G SFP+ AOC (2-meter, SFP+ to SFP+) | |
| SFP-10G-AOC3M | Cisco SFP-10G-AOC3M Compatible 10G SFP+ AOC (3-meter, SFP+ to SFP+) | |
| SFP-10G-AOC5M | Cisco SFP-10G-AOC5M Compatible 10G SFP+ AOC (5-meter, SFP+ to SFP+) | |
| SFP-10G-AOC7M | Cisco SFP-10G-AOC7M Compatible 10G SFP+ AOC (7-meter, SFP+ to SFP+) | |
| SFP-10G-AOC10M | Cisco SFP-10G-AOC10M Compatible 10G SFP+ AOC (10-meter, SFP+ to SFP+) | |
| GLC-T | Cisco GLC-T Compatible 1000BASE-T SFP Copper RJ-45 100m Transceiver | US$13.02 |
| GLC-TE | Cisco GLC-TE Compatible 1000BASE-T SFP Copper RJ-45 100m Transceiver | US$13.02 |
| GLC-SX-MM | Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m Transceiver | US$6.00 |
| GLC-LH-SM | Cisco GLC-LH-SM Compatible 1000Base-LX/LH SFP 1310nm 10km Transceiver | US$7.00 |
| GLC-ZX-SM | Cisco GLC-ZX-SM Compatible 1000BASE-ZX SFP 1550nm 70km Transceiver | US$24.00 |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD Compatible 1000BASE-ZX SFP 1550nm 70km DOM Transceiver | US$24.00 |
| GLC-BX-D | Cisco GLC-BX-D Compatible 1000BASE-BX-D SFP 1490nm-TX/1310nm-RX 10km DOM Transceiver | US$12.00 |
| GLC-BX-U | Cisco GLC-BX-U Compatible 1000BASE-BX-U SFP 1310nm-TX/1490nm-RX 10km DOM Transceiver | US$9.00 |
| CWDM SFP | 1.25G CWDM SFP 1270~1450nm 120km LC DDM Optical Transceiver | US$55.00 |
| GLC-SX-MMD | Cisco GLC-SX-MMD Compatible 1000BASE-SX SFP 850nm 550m DOM Transceiver | US$6.00 |
| GLC-LH-SMD | Cisco GLC-LH-SMD Compatible 1000Base-LX/LH SFP 1310nm 10km DOM Transceiver | US$7.00 |
| GLC-EX-SMD | Cisco GLC-EX-SMD Compatible 1000BASE-EX SFP 1310nm 40km DOM Transceiver | US$12.00 |
| GLC-GE-100FX | Cisco GLC-GE-100FX Compatible 100BASE-FX SFP 1310nm 2km Transceiver for Gigabit Ethernet SFP Ports | US$6.98 |
Note: Cozlink compatible with Cisco optical module. For more information, please feel free to contact us.
How to determine what types of optical transceivers for Cisco switches?
1. Finding the corresponding optical module compatibility matrix via Cisco official website.
2. On the running switches, enter the privileged mode and input # "show idprom interface gi1 / 0/48" command, you can query the optical module model and serial number, If not, try to input other two commands: xuxic or show idprom int g2/6
3. Checking the type and port based on the specification, it can be used as long as it is gigabit SFP optical module interface. But the specific models to be decided according to the actual demand, such as type, the actual use of distance, single-mode or multimode, single fiber or dual fiber etc. Welcome to consult Cozlink engineer.
Summary
The Cisco WS-C2960X-48FPD-L Switch consists of 48 Ethernet ports and 4 10Gigabit SFP+ ports. The alphabet L in the product number shows it’s a LAN base switch, P represents that this is a Power over Ethernet enabled switch and D represents that this switch includes 10 Gigabit Ethernet port. Just like all other switches from this series this particular model's also works with a lot of Gigabit Ethernet SFP optical transceivers which can be found in Cozlink with high quality and competitive price. Moreover, most of them have adequate inventory, which ensures the customers to enjoy same day shipping. In addition to providing optical transceivers, Cozlink also offers patch cords, fiber optic pigtails and high speed cables for your choice.
