Optical Transceivers for Cisco WS-C2960S-48TD-L Switch
2016-11-28

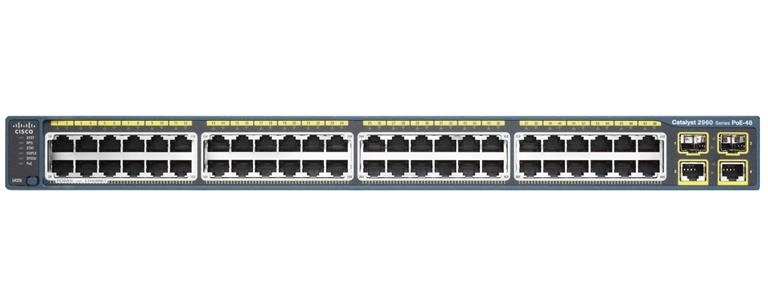

Cisco WS-C2960S-48TD-L Switch Overview
WS-C2960S-48TD-L belongs to the Cisco Catalyst 2960S Series Switches; it’s an ideal product for fresh level business, mid-market, and branch office networks with high quality services supported by Cisco IOS LAN Lite Software. The Cisco Catalyst 2960-S Series Switches WS-C2960S-48TD-L, similar to WS-C2960S-24TD-L but has twice ports to 48 Ethernet 10/100/1000 ports. Its 2 Ten Gigabit Ethernet SFP+ or 2 One Gigabit Ethernet SFP dual-purpose uplinks, with each dual-purpose uplink port has one port active at a time, for Gigabit Ethernet uplink flexibility, allowing use of either a copper or fiber uplink is also the distinctive function of this model, as excellent as WS-C2960S-24TD-L.
Cisco WS-C2960S-48TD-L Switch Parameters
| Device Type | Switch - 48 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance (64-byte packet size): 101.2 Mpps |
| MAC Address Table Size | 8K entries |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Features | Layer 2 switching, auto-sensing per device, dynamic IP address assignment, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), PoE+,Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 44.5 cm x 29.9 cm x 4.5 cm |
| Weight | 4.3 kg |
Optical Transceivers for Cisco WS-C2960S-48TD-L Switch
Based on the SFP (optical module form factor) Gigabit Ethernet ports accommodate range SFP (optical module form factor) optical transceivers, including Cisco 10GBASE-SR, 10GBASE-LRM, 10GBASE-LR, 10GBase-ER, 10GBASE-ZR/ZW, DAC Twinax Cable. For more information on these Cisco optical transceivers, please check the following table.
| MFG Part number | Description | Price |
| SFP-H10GB-CU1M | Cisco SFP-H10GB-CU1M Compatible 10G SFP+ DAC Twinax Cable (1-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU3M | Cisco SFP-H10GB-CU3M Compatible 10G SFP+ DAC Twinax Cable (3-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU5M | Cisco SFP-H10GB-CU5M Compatible 10G SFP+ DAC Twinax Cable (5-meter, passive, SFP+ to SFP+, 24AWG) | |
| SFP-10G-SR | Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver | US$16.00 |
| SFP-10G-LRM | Cisco SFP-10G-LRM Compatible 10GBASE-LRM SFP+ 1310nm 220m DOM Transceiver | US$32.55 |
| SFP-10G-LR | Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Transceiver | US$32.55 |
| SFP-10G-ER | Cisco SFP-10G-ER Compatible 10GBase-ER SFP+ 1550nm 40km Transceiver Module | US$153.45 |
| SFP-10G-SR-S | Cisco SFP-10G-SR-S Transceiver Module Compatible 10G 10G SFP+ 850nm 300m | US$16.00 |
| SFP-10G-LR-S | Cisco SFP-10G-LR-S Transceiver Module Compatible 10G 10G SFP+ 1310nm 10km | US$32.55 |
| SFP-10G-ER-S | Cisco SFP-10G-ER-S Transceiver Module Compatible 10G 10G SFP+ 1550nm 40km | US$153.45 |
| SFP-10G-ZR | Cisco SFP-10G-ZR Compatible 10GBASE-ZR/ZW and OTU2e SFP+ 1550nm 80km DOM Transceiver | US$339.45 |
| SFP-10G-ZR-S | Cisco SFP-10G-ZR-S Transceiver Module Compatible 10G SFP+ Pluggable 1550nm 80km | US$339.45 |
| DWDM SFP+ | 10G SFP+ DWDM 40km Transceiver CH17~CH61 LC SM Duplex DDM Optical Module | US$260.40 |
| CWDM SFP+ | 10G SFP+ CWDM 20km Transceiver 1270~1330nm LC SM Duplex DDM Optical Module | US$139.50 |
| SFP-H10GB-CU1-5M | Cisco SFP-H10GB-CU1-5M Compatible 10G SFP+ DAC Twinax Cable (1.5-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU2M | Cisco SFP-H10GB-CU2M Compatible 10G SFP+ DAC Twinax Cable (2-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU2-5M | Cisco SFP-H10GB-CU2-5M Compatible 10G SFP+ DAC Twinax Cable (2.5-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-ACU7M | Cisco SFP-H10GB-ACU7M Compatible 10G SFP+ DAC Twinax Cable (7-meter, active, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-ACU10M | Cisco SFP-H10GB-ACU10M Compatible 10G SFP+ DAC Twinax Cable (10-meter, active, SFP+ to SFP+, 28AWG) | |
| SFP-10G-AOC1M | Cisco SFP-10G-AOC1M Compatible 10G SFP+ AOC (1-meter, SFP+ to SFP+) | |
| SFP-10G-AOC2M | Cisco SFP-10G-AOC2M Compatible 10G SFP+ AOC (2-meter, SFP+ to SFP+) | |
| SFP-10G-AOC3M | Cisco SFP-10G-AOC3M Compatible 10G SFP+ AOC (3-meter, SFP+ to SFP+) | |
| SFP-10G-AOC5M | Cisco SFP-10G-AOC5M Compatible 10G SFP+ AOC (5-meter, SFP+ to SFP+) | |
| SFP-10G-AOC7M | Cisco SFP-10G-AOC7M Compatible 10G SFP+ AOC (7-meter, SFP+ to SFP+) | |
| SFP-10G-AOC10M | Cisco SFP-10G-AOC10M Compatible 10G SFP+ AOC (10-meter, SFP+ to SFP+) | |
| GLC-SX-MM | Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m Transceiver | US$6.00 |
| GLC-LH-SM | Cisco GLC-LH-SM Compatible 1000Base-LX/LH SFP 1310nm 10km Transceiver | US$7.00 |
| GLC-ZX-SM | Cisco GLC-ZX-SM Compatible 1000BASE-ZX SFP 1550nm 70km Transceiver | US$24.00 |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD Compatible 1000BASE-ZX SFP 1550nm 70km DOM Transceiver | US$24.00 |
| GLC-BX-D | Cisco GLC-BX-D Compatible 1000BASE-BX-D SFP 1490nm-TX/1310nm-RX 10km DOM Transceiver | US$12.00 |
| GLC-BX-U | Cisco GLC-BX-U Compatible 1000BASE-BX-U SFP 1310nm-TX/1490nm-RX 10km DOM Transceiver | US$9.00 |
| CWDM SFP | 1.25G CWDM SFP 1270~1450nm 120km LC DDM Optical Transceiver | US$55.00 |
| GLC-SX-MMD | Cisco GLC-SX-MMD Compatible 1000BASE-SX SFP 850nm 550m DOM Transceiver | US$6.00 |
| GLC-LH-SMD | Cisco GLC-LH-SMD Compatible 1000Base-LX/LH SFP 1310nm 10km DOM Transceiver | US$7.00 |
| GLC-EX-SMD | Cisco GLC-EX-SMD Compatible 1000BASE-EX SFP 1310nm 40km DOM Transceiver | US$12.00 |
Note: Cozlink compatible with Cisco optical module. For more information, please feel free to contact us.
How to determine what types of optical transceivers for Cisco switches?
1. Finding the corresponding optical module compatibility matrix via Cisco official website.
2. On the running switches, enter the privileged mode and input # "show idprom interface gi1 / 0/48" command, you can query the optical module model and serial number, If not, try to input other two commands: xuxic or show idprom int g2/6
3. Checking the type and port based on the specification, it can be used as long as it is gigabit SFP optical module interface. But the specific models to be decided according to the actual demand, such as type, the actual use of distance, single-mode or multimode, single fiber or dual fiber etc. Welcome to consult Cozlink engineer.
Summary
The Cisco WS-C2960S-48TD-L switch includes Cisco FlexStack switch stacking capability with 1 and 10 Gigabit connectivity, and Power over Ethernet Plus (PoE+) with the Cisco Catalyst 2960 switches offering fast Ethernet access connectivity and PoE capabilities. These switches support a huge number of Gigabit Ethernet SFP optical transceivers. All these high quality fiber optic transceivers can be found on Cozlink for great prices. Cozlink also make sure to provide its customers same day shipping. You can also choose fiber optic pigtails and high speed cables from a great range of products on Cozlink.
