Optical Transceivers for Cisco ME-3600X-24FS-M= Switch
2016-11-15

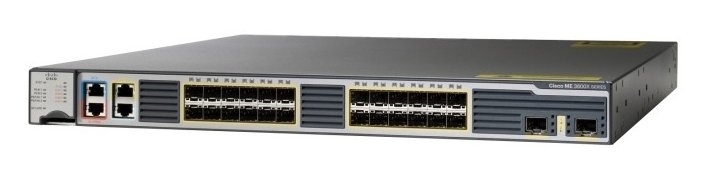

Cisco ME-3600X-24FS-M= Switch Overview
ME-3600X-24FS-M= belongs to the Cisco Catalyst Nexus 3600X Series Switches; these switches are ideal for traditional or fully automated data center deployments. The Cisco ME 3600X series of Ethernet access switches is Cisco's first series of switches built specifically for the convergence of wireless and wire-line services. A natural evolution to Cisco's Carrier Ethernet portfolio, the Cisco ME 3600X series extends the portfolio's transport speed to 10 Gbps in the access layer for business and mobile applications. It also enables service providers to initiate Multi-protocol Label Switching (MPLS)-based VPN services from within the access layer. Designed around key Carrier Ethernet features that simplify network operation
Cisco ME-3600X-24FS-M= Switch Parameters
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Desktop 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x Gigabit SFP + 4 x 10 Gigabit SFP+ |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, PIM-DM |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3 |
| Features | ARP support, MPLS support, VLAN support, Syslog support, Class-Based Weighted Fair Queuing (CBWFQ), Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ah, IEEE 802.1ag |
| Power | AC 100/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 44.5 cm x 51.6 cm x 4.4 cm |
| Weight | 6.6 kg |
Optical Transceivers for Cisco ME-3600X-24FS-M= Switch
Based on the SFP (optical module form factor) Gigabit Ethernet ports accommodate range SFP (optical module form factor) optical transceivers, including Cisco 10GBASE-SR SFP+, 10GBASE-LR SFP+, 10GBase-ER SFP+, 10G SFP+ DAC Twinax Cable, 10G SFP+ DAC Twinax Cable, 10G SFP+ AOC, 10GBASE-ZR/ZW. For more information on these Cisco optical transceivers, please check the following table.
| MFG Part number | Description | Price |
| SFP-10G-SR | Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver | US$16.00 |
| SFP-10G-LRM | Cisco SFP-10G-LRM Compatible 10GBASE-LRM SFP+ 1310nm 220m DOM Transceiver | US$32.55 |
| SFP-10G-LR | Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Transceiver | US$32.55 |
| SFP-10G-ER | Cisco SFP-10G-ER Compatible 10GBase-ER SFP+ 1550nm 40km Transceiver Module | US$153.45 |
| SFP-10G-ZR | Cisco SFP-10G-ZR Compatible 10GBASE-ZR/ZW and OTU2e SFP+ 1550nm 80km DOM Transceiver | US$339.45 |
| SFP-H10GB-CU1M | Cisco SFP-H10GB-CU1M Compatible 10G SFP+ DAC Twinax Cable (1-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU3M | Cisco SFP-H10GB-CU3M Compatible 10G SFP+ DAC Twinax Cable (3-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU5M | Cisco SFP-H10GB-CU5M Compatible 10G SFP+ DAC Twinax Cable (5-meter, passive, SFP+ to SFP+, 24AWG) | |
| SFP-H10GB-CU1-5M | Cisco SFP-H10GB-CU1-5M Compatible 10G SFP+ DAC Twinax Cable (1.5-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-10G-BXD-I | Cisco SFP-10G-BXD-I Transceiver Module Compatible 10G BIDI SFP+ 1330nm TX/1270nm RX 10km | US$60.45 |
| SFP-10G-BXU-I | Cisco SFP-10G-BXU-I Transceiver Module Compatible 10G WDM BIDI SFP+ 1270nm TX/1330nm RX 10km | US$60.45 |
| SFP-10G-BX40D-I | Cisco SFP-10G-BX40D-I Transceiver Module Compatible 10G WDM BIDI SFP+ 1330nm TX/1270nm RX 40km | US$83.70 |
| SFP-10G-BX40U-I | Cisco SFP-10G-BX40U-I Transceiver Module Compatible 10G WDM BIDI SFP+ 1270nm TX/1330nm RX 40km | US$83.70 |
Note: Cozlink compatible with Cisco optical module. For more information, please feel free to contact us.
How to determine what types of optical transceivers for Cisco switches?
1. Finding the corresponding optical module compatibility matrix via Cisco official website.
2. On the running switches, enter the privileged mode and input # "show idprom interface gi1 / 0/48" command, you can query the optical module model and serial number, If not, try to input other two commands: xuxic or show idprom int g2/6
3. Checking the type and port based on the specification, it can be used as long as it is gigabit SFP optical module interface. But the specific models to be decided according to the actual demand, such as type, the actual use of distance, single-mode or multimode, single fiber or dual fiber etc. Welcome to consult Cozlink engineer.
Summary
The Cisco ME-3600X-24FS-M= enables premium services with enhanced service-level agreement (SLA) capabilities. These switches are compatible with various Gigabit Ethernet SFP optical transceivers. All these fiber optic transceivers are available on Cozlink at really competitive prices. You can expect same day shipping on cozlink. Not just optical transceivers, you can also find fiber optic pigtails and high speed cables for your choice on cozlink.
