All Cisco QSFP-100G-LR4-S's information (List price, Specs, Datasheet PDF, Compatibility m
2016-12-29
Type Of Model

Cisco QSFP-100G-LR4-S Overview

This Cisco QSFP-100G-LR4-S compatible QSFP28 transceiver provides 100GBase-LR4 throughput up to 10km over single-mode fiber (SMF) at the wavelength specified between 1270nm to 1330nm using a LC connector. It is guaranteed to be 100% compatible with the equivalent Cisco transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. All of the transceivers are Trade Agreements Act (TAA) compliant.

Cisco QSFP-100G

Main Features

  • QSFP28 transceiver module ( equivalent t Cisco QSFP-100G-LR4-S )
  • 100 Gigabit Ethernet
  • 100GBase-LR4
  • LC single-mode
  • up to 6.2 miles
  • 1270-1330 nm

Cisco QSFP-100G-LR4-S List Price

Product

List Price (USD)

Description

QSFP-100G-LR4-S

 $ 29,995.00

100GBASE LR4 QSFP Transceiver, LC, 10km over SMF

Cisco QSFP-100G-LR4-S Datasheet PDF

Cisco QSFP-100G-LR4-S Specs

Header

Model:

Cisco QSFP-100G-LR4-S Compatible QSFP28 TAA Compliant Transceiver

Packaged Quantity:

1

Interface Provided

Connector Qty:

X 2

Connector Type:

LC single-mode

Qty:

1

Type:

Ethernet 100GBase-LR4

Miscellaneous

OEM Manufacturer Equivalent Part Number:

Cisco QSFP-100G-LR4-S

TAA Compliant:

Yes

Networking

Cabling Type:

Ethernet 100GBase-LR4

Connectivity Technology:

Wired

Data Link Protocol:

100 Gigabit Ethernet

Data Transfer Rate:

100 Gbps

Features:

Digital Optical Monitoring (DOM) support

Form Factor:

Plug-in module

Max Transfer Distance:

6.2 miles

Optical Wave Length:

1270-1330 nm

Type:

QSFP28 transceiver module

Service

Support Details Full Contract Period:

Lifetime

Support Details Type:

Limited warranty

Service & Support

Type:

Limited lifetime warranty

Connectors (for SD)

Left Connector Type:

LC single-mode

Cisco QSFP-100G-LR4-S Compatibility matrix

Cisco QSFP-100G-LR4-S is supported on a wide range of Cisco equipment.

Cisco ONS Transport Platform NCS-1002-K9

Cisco Nexus 9000 Series (Fixed 9200) N9K-C92160YC-X

Cisco Nexus 9000 Series (Modular 9500) N9K-X9432C-S

Cisco Nexus 3000 Series N3K-C3232C

Direct Connection for Cisco Compatible 100G QSFP28 LR4 Transceivers

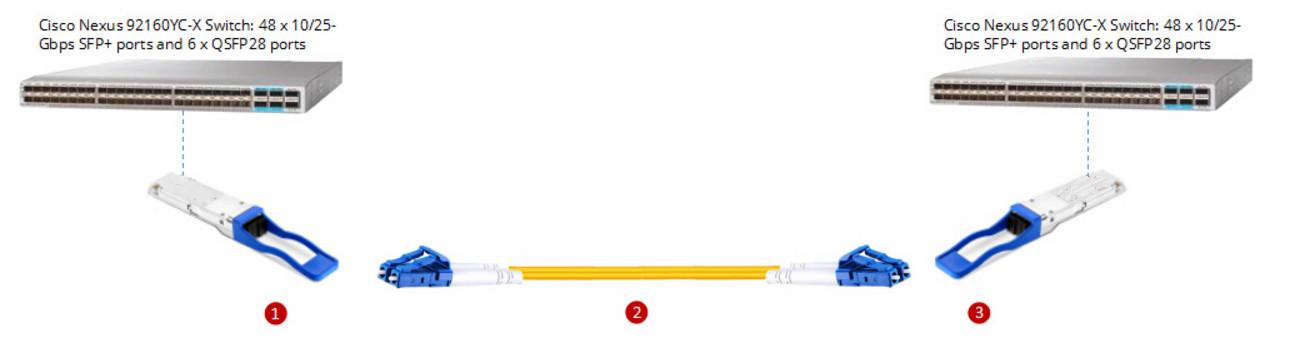

The Cisco 100GBASE-LR4-S QSFP28 Module supports link lengths of up to 10km over a standard single-mode fiber with duplex LC connectors , solution Figure 1 shows the simplest cabling connect between 2pcs Cisco compatible 100G QSFP28 transceivers.
Direct Connection for Cisco Compatible 100G QSFP28 LR4 Transceivers
Item NumberDescription
1QSFP28 Cisco QSFP-100G-LR4-S 100GBASE-LR4 1310nm 10km Compatible Transceiver
21M LC UPC to LC UPC Duplex 2.0mm PVC(OFNR) SMF Fiber Patch Cable
3QSFP28 Cisco QSFP-100G-LR4-S 100GBASE-LR4 1310nm 10km Compatible Transceiver
