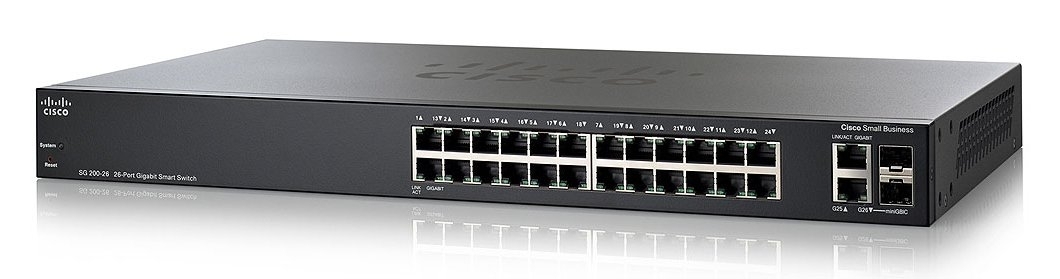

Cisco SLM2024T-UK Switch Overview
SLM2024T-UK belongs to the Cisco Catalyst SG200-26 Series Switches; it’s an ideal combination of price, performance, and capabilities in a solution designed specifically for small businesses. With the Cisco SG200-26 24-Port Smart Gigabit Switch, you can achieve business-class networking security and performance without paying for advanced network management features that you may not need. This expandable Cisco SG200-26 Gigabit Switch provides basic management, security, and quality-of-service (QoS) features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switches. And with an easy-to-use web user interface and the Cisco Discovery Protocol, you can deploy and configure a rock-solid business network in minutes.
Cisco SLM2024T-UK Switch Parameters
| Device Type | Switch - 26 ports - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x combo Gigabit SFP |
| Performance | Switching capacity: 38.69 Mpps ¦ Forwarding performance (64-byte packet size): 52 Gbps |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | RMON, HTTP, TFTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2, CLI |
| Features | Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 44 cm x 25.7 cm x 4.4 cm |
| Weight | 3.27 kg |
Optical Transceivers for Cisco SLM2024T-UK Switch
| MFG Part number | Description | Price |
| GLC-T | Cisco GLC-T Compatible 1000BASE-T SFP Copper RJ-45 100m Transceiver | US$13.02 |
| GLC-TE | Cisco GLC-TE Compatible 1000BASE-T SFP Copper RJ-45 100m Transceiver | US$13.02 |
| GLC-SX-MM | Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m Transceiver | US$6.00 |
| GLC-LH-SM | Cisco GLC-LH-SM Compatible 1000Base-LX/LH SFP 1310nm 10km Transceiver | US$7.00 |
| GLC-ZX-SM | Cisco GLC-ZX-SM Compatible 1000BASE-ZX SFP 1550nm 70km Transceiver | US$24.00 |
| GLC-BX-D | Cisco GLC-BX-D Compatible 1000BASE-BX-D SFP 1490nm-TX/1310nm-RX 10km DOM Transceiver | US$12.00 |
| GLC-BX-U | Cisco GLC-BX-U Compatible 1000BASE-BX-U SFP 1310nm-TX/1490nm-RX 10km DOM Transceiver | US$9.00 |
| GLC-2BX-D | Cisco GLC-2BX-D Compatible 2-channel 1000BASE-BX-D SFP 1490nm-TX/1310nm-RX 10km DOM Transceiver | US$88.35 |
| SFP-GE-S | Cisco SFP-GE-S Compatible 1000BASE-SX SFP 850nm 550m DOM Transceiver | US$6.00 |
| SFP-GE-L | Cisco SFP-GE-L Compatible 1000BASE-LX/LH SFP 1310nm 10km DOM Transceiver | US$7.00 |
| GLC-EX-SMD | Cisco GLC-EX-SMD Compatible 1000BASE-EX SFP 1310nm 40km DOM EXT Transceiver | US$12.00 |
| SFP-GE-Z | Cisco SFP-GE-Z Compatible 1000BASE-ZX SFP 1550nm 70km DOM EXT Transceiver | US$24.00 |
| SFP-GE-T | Cisco SFP-GE-T Compatible 1000BASE-T SFP Copper RJ-45 100m Transceiver | US$13.02 |
| GLC-SX-MM-RGD | Cisco GLC-SX-MM-RGD Compatible 1000BASE-SX SFP 850nm 550m DOM IND Transceiver | US$8.79 |
| GLC-LX-SM-RGD | Cisco GLC-LX-SM-RGD Compatible 1000BASE-LX/LH SFP 1310nm 10km DOM IND Transceiver | US$7.00 |
| GLC-ZX-SM-RGD | Cisco GLC-ZX-SM-RGD Compatible 1000BASE-ZX SFP 1550nm 70km DOM IND Transceiver | US$24.00 |
| GLC-SX-MMD | Cisco GLC-SX-MMD Compatible 1000BASE-SX SFP 850nm 550m DOM Transceiver | US$6.00 |
| GLC-LH-SMD | Cisco GLC-LH-SMD Compatible 1000Base-LX/LH SFP 1310nm 10km DOM Transceiver | US$7.00 |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD Compatible 1000BASE-ZX SFP 1550nm 70km DOM EXT Transceiver | US$24.00 |
Note: Cozlink compatible with Cisco optical module. For more information, please feel free to contact us.
How to determine what types of optical transceivers for Cisco switches?
1. Finding the corresponding optical module compatibility matrix via Cisco official website.
2. On the running switches, enter the privileged mode and input # "show idprom interface gi1 / 0/48" command, you can query the optical module model and serial number, If not, try to input other two commands: xuxic or show idprom int g2/6
3. Checking the type and port based on the specification, it can be used as long as it is gigabit SFP optical module interface. But the specific models to be decided according to the actual demand, such as type, the actual use of distance, single-mode or multimode, single fiber or dual fiber etc. Welcome to consult Cozlink engineer.
Summary
The Cisco SLM2024T-UK makes your business more competitive and efficient, every penny counts. Cisco SG200-26 Smart Gigabit Switches give you just the right the features, performance, and reliability you need, without making you pay for advanced features. These switches support a huge number of Gigabit Ethernet SFP optical transceivers. All these high quality fiber optic transceivers can be found on Cozlink for great prices. Cozlink also make sure to provide its customers same day shipping. You can also choose fiber optic pigtails and high speed cables from a great range of products on Cozlink.
