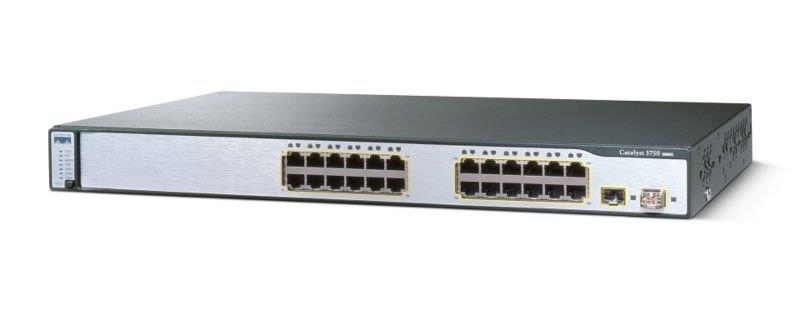

Cisco WS-C3750V2-24TS-S Switch Overview
WS-C3750V2-24TS-S belongs to the Cisco Catalyst 3750 Series Switches; it can serve as a backbone switch for mid-sized networks and a powerful access layer switch for medium enterprise organizations. It offers easy deployment of converged applications and provides configuration flexibility, automation of intelligent network-services configurations and support for converged network patterns. The Cisco Catalyst 3750 v2 series switches WS-C3750V2-24TS-S are next-generation energy-efficient Layer 3 Fast Ethernet stackable switches. This series of switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprints. The Cisco Catalyst 3750 v2 series consumes less power than its predecessors and is the ideal access layer for enterprise, retail, and branch-office environments, as it increases productivity and investment protection by enabling a unified network for data, voice, and video.
Cisco WS-C3750V2-24TS-S Switch Parameters
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 + 2 x SFP |
| Performance | Switching fabric bandwidth: 32 Gbps ¦ Forwarding performance: 6.5 Mpps |
| Capacity | Virtual interfaces (VLANs): 1000 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 12K entries |
| Jumbo Frame Support | 9016 bytes |
| Routing Protocol | RIP, RIP-1, RIP-2, EIGRP, HSRP, IGMP, static IP routing, IGMPv3 |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2, CLI |
| Features | Layer 3 switching, Layer 2 switching, VLAN support, IGMP snooping, manageable, stackable, MAC address filtering, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), Cisco StackWise Technology, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 44.3 cm x 29.5 cm x 4.4 cm |
| Weight | 3.7 kg |
Optical Transceivers for Cisco WS-C3750V2-24TS-S Switch
Based on the SFP (optical module form factor) Gigabit Ethernet ports accommodate range SFP (optical module form factor) optical transceivers, including Cisco 100BASE-FX. For more information on these Cisco optical transceivers, please check the following table.
| MFG Part number | Description | Price |
| GLC-GE-100FX | Cisco GLC-GE-100FX Compatible 100BASE-FX SFP 1310nm 2km Transceiver for Gigabit Ethernet SFP Ports | US$6.98 |
How to determine what types of optical transceivers for Cisco switches?
1. Finding the corresponding optical module compatibility matrix via Cisco official website.
2. On the running switches, enter the privileged mode and input # "show idprom interface gi1 / 0/48" command, you can query the optical module model and serial number, If not, try to input other two commands: xuxic or show idprom int g2/6
3. Checking the type and port based on the specification, it can be used as long as it is gigabit SFP optical module interface. But the specific models to be decided according to the actual demand, such as type, the actual use of distance, single-mode or multimode, single fiber or dual fiber etc. Welcome to consult Cozlink engineer.
Summary
The Cisco Catalyst WS-C3750V2-24TS-S Switch is an innovative product of 3750V2 switches series and offers improved LAN operational performance with highest resiliency and ease of use. The innovative unified stack architecture of this switch sets the standard in redundancy, stack management and failover. This high quality Cisco switch works with a number of Gigabit Ethernet SFP optical transceivers. You can easily find these high quality fiber optic transceivers at very competitive rates on Cozlink. What makes this even better that Cozlink also offer you a wide range of patch cords, fiber optic pigtails and high speed cables to choose from and Cozlink also ensure that you get the same day shipping.
