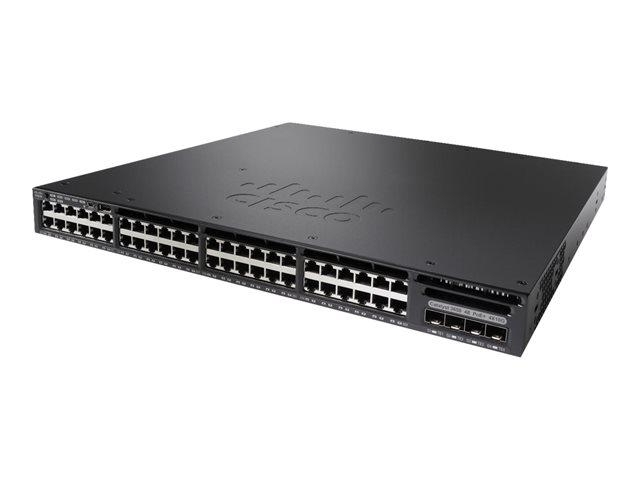

Cisco WS-C3650-48TQ-E Switch Overview
WS-C3650-48TQ-E belongs to the Cisco Catalyst 3650 Series Switches; Due to its enhanced features is best utilized in enterprise class businesses and can be used in multiple branch office networks or campus networks. Size of the business is usually medium size for this switch but it can be employed by small sized businesses as well. The next-generation WS-C3650-48TQ-E is the enterprise level standalone switch with stacking option for access-layer and distribution-layer design. WS-C3650-48TQ-E was built with 48 Gigabit Ethernet ports and 4 fixed 10G SFP+ (SFP+ is compatible with SFP) uplink ports in IP service feature set that support advanced layer 3 routing features and superior QoS capabilities. Cisco Catalyst 3650 series combines both wired and wireless connectivity on a single platform which takes unified Access Data plane (UADP)application-specific integrated circuit (ASIC). Cisco StackWise-160 providing resiliency within the stack and up to nine switches stacking, providing simplified network management by using single IP address among the stack members. IP service features enable Flexible Netflow to optimize network infrastructure by monitoring traffic flows, which can identify the threat of network.
Cisco WS-C3650-48TQ-E Switch Parameters
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps |
| Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Virtual interfaces (VLANs): 4000 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Features | Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Flexible NetFlow (FNF) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Optional |
Dimensions (WxDxH) | 44.5 cm x 44.8 cm x 4.4 cm |
| Weight | 7.21 kg |
Optical Transceivers for Cisco WS-C3650-48TQ-E Switch
| MFG Part number | Description | Price |
| SFP-H10GB-CU1M | Cisco SFP-H10GB-CU1M Compatible 10G SFP+ DAC Twinax Cable (1-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU3M | Cisco SFP-H10GB-CU3M Compatible 10G SFP+ DAC Twinax Cable (3-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU5M | Cisco SFP-H10GB-CU5M Compatible 10G SFP+ DAC Twinax Cable (5-meter, passive, SFP+ to SFP+, 24AWG) | |
| SFP-10G-SR | Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver | US$16.00 |
| SFP-10G-LRM | Cisco SFP-10G-LRM Compatible 10GBASE-LRM SFP+ 1310nm 220m DOM Transceiver | US$32.55 |
| SFP-10G-LR | Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Transceiver | US$32.55 |
| SFP-10G-ER | Cisco SFP-10G-ER Compatible 10GBase-ER SFP+ 1550nm 40km Transceiver Module | US$153.45 |
| SFP-10G-LR-S | Cisco SFP-10G-LR-S Transceiver Module Compatible 10G 10G SFP+ 1310nm 10km | US$32.55 |
| SFP-10G-ER-S | Cisco SFP-10G-ER-S Transceiver Module Compatible 10G 10G SFP+ 1550nm 40km | US$153.45 |
| SFP-10G-ZR | Cisco SFP-10G-ZR Compatible 10GBASE-ZR/ZW and OTU2e SFP+ 1550nm 80km DOM Transceiver | US$339.45 |
| SFP-10G-ZR-S | Cisco SFP-10G-ZR-S Transceiver Module Compatible 10G SFP+ Pluggable 1550nm 80km | US$339.45 |
| DWDM SFP+ | Cisco DWDM-SFP10G-30.33 Transceiver Module Compatible 10G DWDM SFP+ ER Hot Pluggable DWDM:CH17~CH61 40km | US$260.40 |
| SFP-H10GB-CU1-5M | Cisco SFP-H10GB-CU1-5M Compatible 10G SFP+ DAC Twinax Cable (1.5-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU2M | Cisco SFP-H10GB-CU2M Compatible 10G SFP+ DAC Twinax Cable (2-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-CU2-5M | Cisco SFP-H10GB-CU2-5M Compatible 10G SFP+ DAC Twinax Cable (2.5-meter, passive, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-ACU7M | Cisco SFP-H10GB-ACU7M Compatible 10G SFP+ DAC Twinax Cable (7-meter, active, SFP+ to SFP+, 30AWG) | |
| SFP-H10GB-ACU10M | Cisco SFP-H10GB-ACU10M Compatible 10G SFP+ DAC Twinax Cable (10-meter, active, SFP+ to SFP+, 28AWG) | |
| SFP-10G-AOC1M | Cisco SFP-10G-AOC1M Compatible 10G SFP+ AOC (1-meter, SFP+ to SFP+) | |
| SFP-10G-AOC2M | Cisco SFP-10G-AOC2M Compatible 10G SFP+ AOC (2-meter, SFP+ to SFP+) | |
| SFP-10G-AOC3M | Cisco SFP-10G-AOC3M Compatible 10G SFP+ AOC (3-meter, SFP+ to SFP+) | |
| SFP-10G-AOC5M | Cisco SFP-10G-AOC5M Compatible 10G SFP+ AOC (5-meter, SFP+ to SFP+) | |
| SFP-10G-AOC7M | Cisco SFP-10G-AOC7M Compatible 10G SFP+ AOC (7-meter, SFP+ to SFP+) | |
| SFP-10G-AOC10M | Cisco SFP-10G-AOC10M Compatible 10G SFP+ AOC (10-meter, SFP+ to SFP+) | |
| SFP-10G-BXD-I | Cisco SFP-10G-BXD-I Transceiver Module Compatible 10G BIDI SFP+ 1330nm TX/1270nm RX 10km | US$60.45 |
| SFP-10G-BXU-I | Cisco SFP-10G-BXU-I Transceiver Module Compatible 10G WDM BIDI SFP+ 1270nm TX/1330nm RX 10km | US$60.45 |
| SFP-10G-BX40D-I | Cisco SFP-10G-BX40D-I Transceiver Module Compatible 10G WDM BIDI SFP+ 1330nm TX/1270nm RX 40km | US$83.70 |
| SFP-10G-BX40U-I | Cisco SFP-10G-BX40U-I Transceiver Module Compatible 10G WDM BIDI SFP+ 1270nm TX/1330nm RX 40km | US$83.70 |
Note: Cozlink compatible with Cisco optical module. For more information, please feel free to contact us.
How to determine what types of optical transceivers for Cisco switches?
1. Finding the corresponding optical module compatibility matrix via Cisco official website.
2. On the running switches, enter the privileged mode and input # "show idprom interface gi1 / 0/48" command, you can query the optical module model and serial number, If not, try to input other two commands: xuxic or show idprom int g2/6
3. Checking the type and port based on the specification, it can be used as long as it is gigabit SFP optical module interface. But the specific models to be decided according to the actual demand, such as type, the actual use of distance, single-mode or multimode, single fiber or dual fiber etc. Welcome to consult Cozlink engineer.
Summary
The Cisco WS-C3650-48TQ-E is basically a Cisco Catalyst Switch. The C3650 tells that it belongs in the 3650 Catalyst Series where the C stands for Catalyst. Also the 48T indicates that it is 48 Port Ethernet Switch. These switches support a huge number of Gigabit Ethernet SFP optical transceivers. All these high quality fiber optic transceivers can be found on Cozlink for great prices. Cozlink also make sure to provide its customers same day shipping. You can also choose fiber optic pigtails and high speed cables from a great range of products on Cozlink.
