The Cisco 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Main features of Cisco 10GBASE SFP+ modules include:
- Smallest 10G form factor
- Supports 10GBASE Ethernet and OTU2/OTU2e
- Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch
- Provides flexibility of interface choice
- Supports “pay-as-you-populate” model
- Supports digital optical monitoring capability
- Supports the Cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco
- Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.
Cisco SFP-10G-SR
The Cisco 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000MHz km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz km MMF (OM4), up to 400m link lengths are possible.
Cisco SFP-10G-SR-X
The Cisco SFP-10G-SR-X is a multirate 10GBASE-SR, 10GBASE-SW and OTU2/OTU2e module for extended operating temperature range. It supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.
Except for version 1, which supports only 10GBASE-SR.
Cisco SFP-10G-LRM
The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3 or OM4. For additional information on mode conditioning patch cord requirements please see: http://www.cisco.com/en/US/prod/collateral/modules/ps5455/product_bulletin_c25-530836.html.
The Cisco 10GBASE-LRM Module also supports link lengths of 300m on standard single-mode fiber (SMF, G.652).
Cisco FET-10G
The Cisco FET-10G Fabric Extender Transceiver support link lengths up to 100m on laser-optimized OM3 or OM4 multimode fiber. It is supported on fabric links only from a Nexus 2000 to a Cisco parent switch. Note this product is not orderable individually. For more information refer to Nexus 2000 datasheet: http://www.cisco.com/en/US/prod/collateral/switches/ps9441/ps10110/data_sheet_c78-507093.html.
Cisco SFP-10G-LR
The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).
Cisco SFP-10G-LR-X
The Cisco SFP-10G-LR-X is a multirate 10GBASE-LR, 10GBASE-LW and OTU2/OTU2e module for extended operating temperature range. It supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).
Cisco SFP-10G-ER
The Cisco 10GBASE-ER Module supports a link length of up to 40 kilometers on standard single-mode fiber (SMF, G.652).
Cisco SFP-10G-ZR
The Cisco SFP-10G-ZR is a multirate 10GBASE-ZR, 10GBASE-ZW and OTU2/OTU2e module. It supports link lengths of up to about 80 kilometers on standard single-mode fiber (SMF, G.652). This interface is not specified as part of the 10 Gigabit Ethernet standard and is instead built according to Cisco specifications.
Cisco SFP+ Twinax Copper Cables
Cisco SFP+ Copper Twinax direct-attach cables are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. Cisco offers passive Twinax cables in lengths of 1, 1.5, 2, 2.5, 3 and 5 meters, and active Twinax cables in lengths of 7 and 10 meters.
Cisco Direct-Attach Twinax Copper Cable Assembly with SFP+ Connectors
Cisco SFP+ Active Optical Cables
Cisco SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. Cisco offers Active Optical Cables in lengths of 1, 2, 3, 5, 7, and 10 meters.
Cisco Direct-Attach Active Optical Cables with SFP+ Connectors

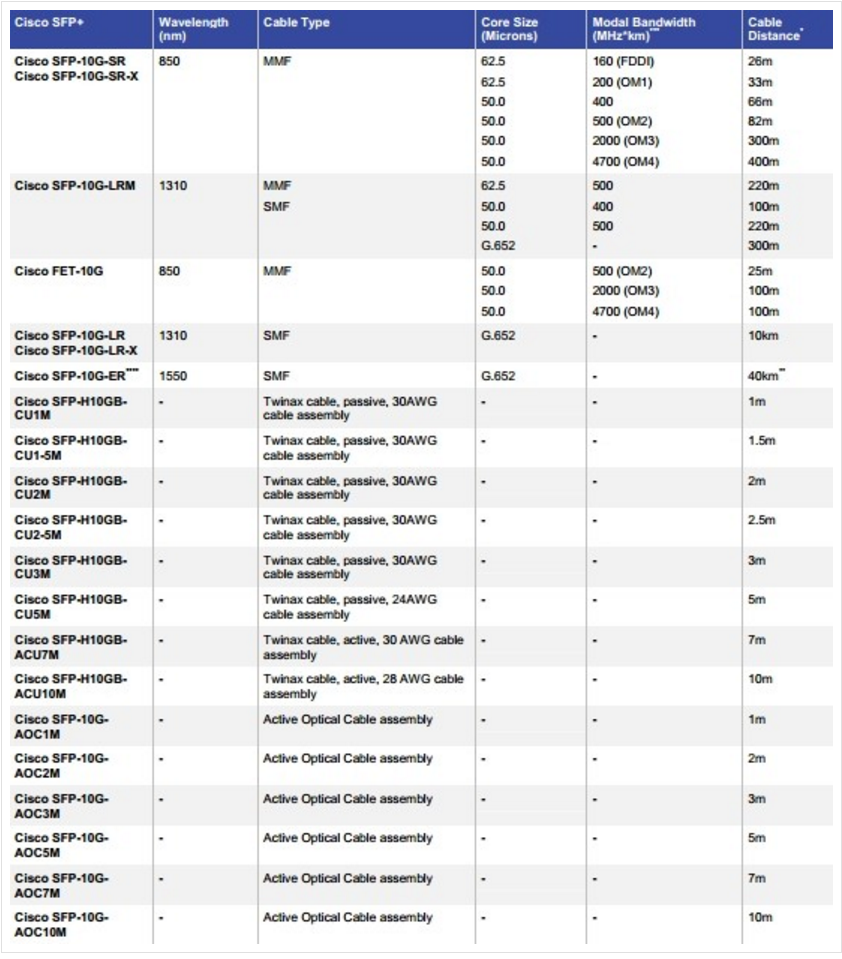

SFP+ Port Cabling Specifications
- Minimum cabling distance for -SR, -LRM, -LR, -ER modules is 2m, according to the IEEE 802.3ae.
- Links longer than 30km are considered engineered links as per IEEE 802.3ae.
- Specified at transmission wavelength.
- Requires 5 dB 1550nm fixed loss attenuator for < 20km. Attenuator is available as a spare.
- The part number is 15216 ATT LC 5=.

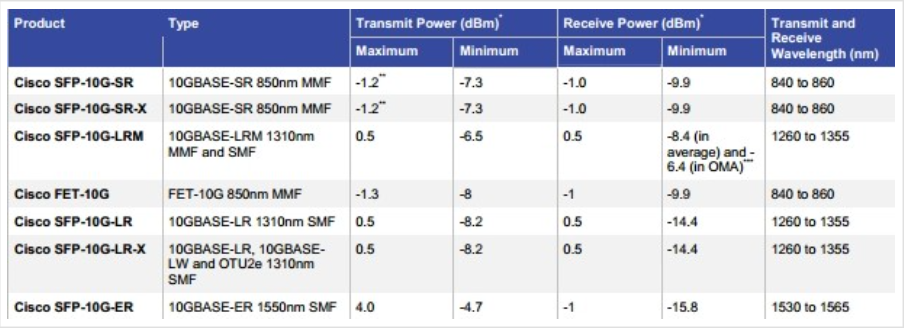

Optical Transmit and Receive Specifications
- Transmitter and receiver power is in average, unless specified.
- The launch power shall be the lesser of the class 1 safety limit or the maximum receive power. Class 1 laser requirements are defined by IEC 60825-1: 2001.
- Both average and OMA specifications must be met simultaneously

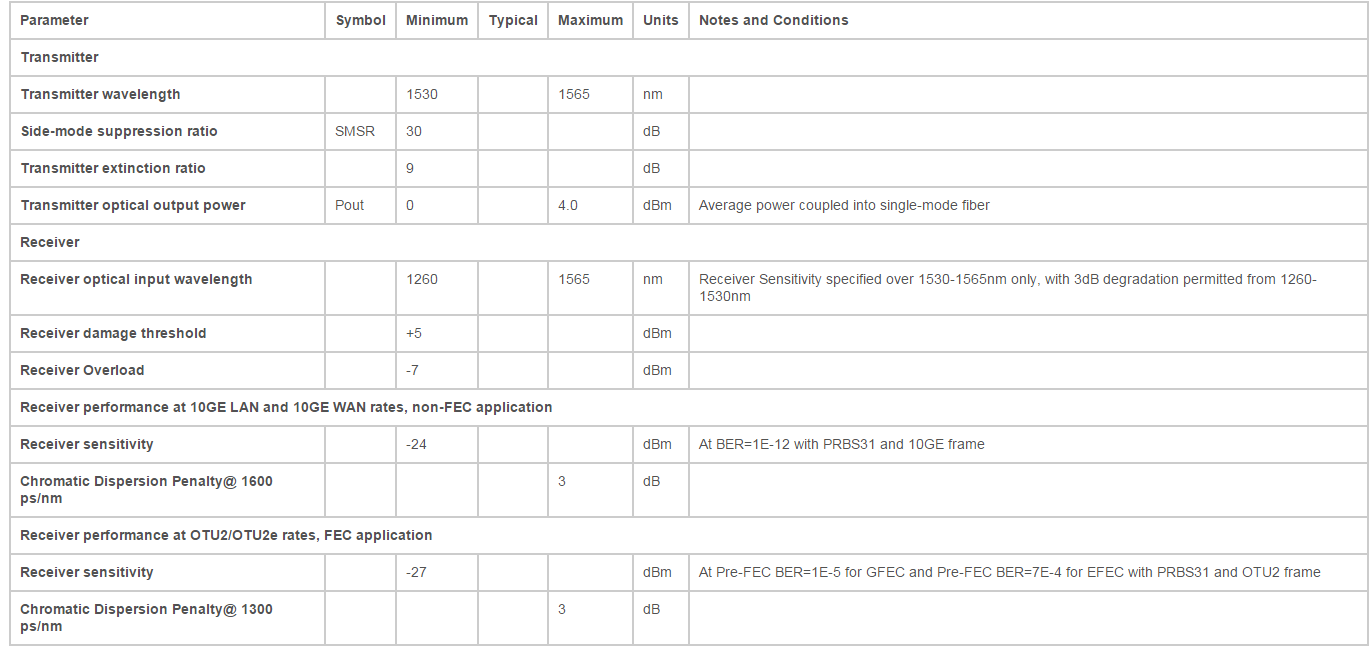

SFP-10G-ZR Optical Parameters

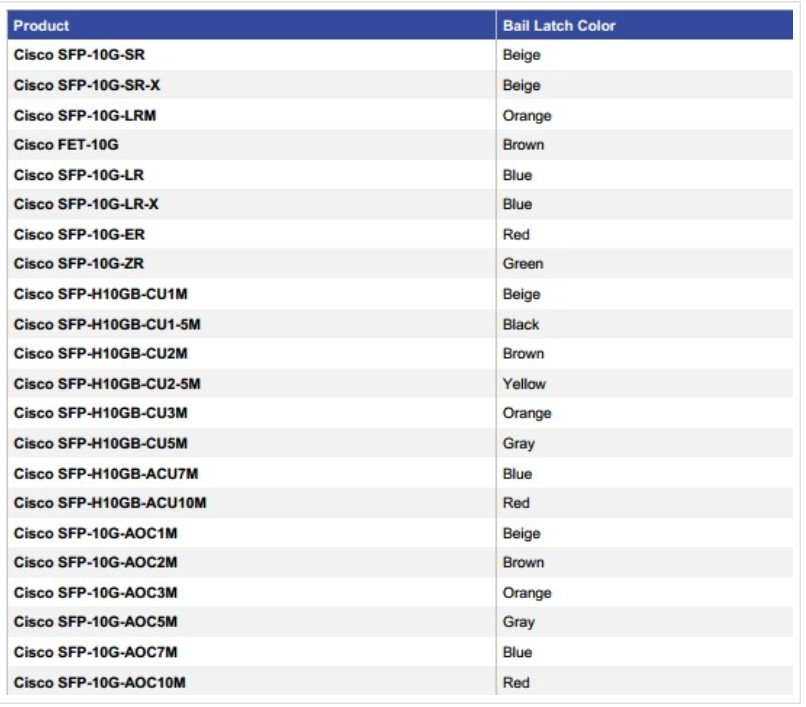

SFP+ Optical Modules Color Code
Platform Support
7600 Series Router ASR 901 ASR 903 ASR 1000 Series Router ASR 9000 Series Router ASR 9000v Series Router Catalyst 2350 and 2360 Series Switches Catalyst 2960-S, 2960-X, and 2960-XR Series Switches Catalyst 3100 Blade Switches Catalyst 3560, 3560-E, and 3560-X Series Switches Catalyst 3750, 3750-E, and 3750-X Series Switches Catalyst 3850 Series Switches | Catalyst 4500 and 4500-X Series Switches CRS Router MDS 9000 ME 4500 ME 4900NCS 6000 Series Router Nexus 2000, 3000, and 4000 Series Switches Nexus 9000 and 9500 (modular) Series Switches RF Gateway Series SCE 8000 Shared Port Adapter (SPA) Unified Computing System (UCS) Switches |
SFP+ Modules Maximum Power Consumption
Dimensions
Dimensions (H x W x D): 8.5 x 13.4 x 56.5mm. Cisco SFP+ connectors typically weigh 75 grams or less.
Environmental Conditions and Power Requirements.
Operating temperature range:
- Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
- Extended temperature range (EXT): -5 to 85°C (23 to 185°F)
- Industrial temperature range (IND): -40 to 85°C (-40 to 185°F)
- Storage temperature range: -40 to 85°C (-40 to 185°F)
