Outdoor Pole Mounted Box 1 Loop Inlet 8Outlets Pre-Connectors
Type
Indoor Outdoor
Installation Way
Wall mounted Pole mounted
Distribution
Plugin PLC Splitter no PLC Splitter
Max Capacity
16
Online consultationSend email
Product list FAQ Reviews Resources
New

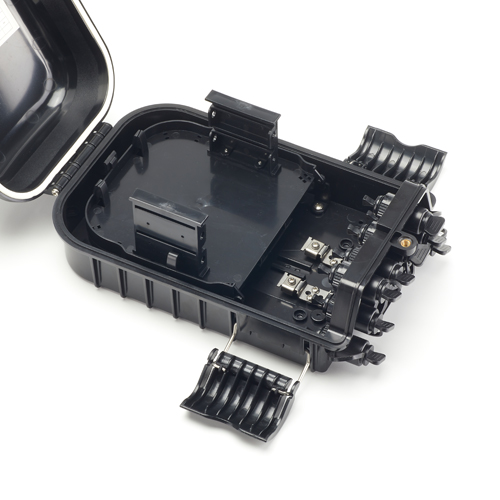

SS-8Cores-007E 8 cores terminal and distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
BESTSELLERS
PRODUCT SPECIFICATIONS
  • Total enclosed structure.
  • Material: PC+ABS, wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65。
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
  • Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
  • Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
  • Waterproof SC/APC adapter

Environmental requirement Working temperature -40℃～+85℃
  Relative humidity ≤85%（+30℃）
  Atmospheric pressure 70KPa～106Kpa
Main technical data Insertion loss ≤0.2dB
  UPC return loss ≥50dB
  APC return loss ≥60dB
  Life of insertion and extraction ＞1000 times
Thunder-proof technical data isolation resistance ≤2MΩ/500V（DC）
  IR ≥2MΩ/500V
  The withstand voltage between grounding device and cabinet ≥3000V（DC）/min
