HOME > All Products > FTTX Box > Optical Ternimal Box > Outdoor 12 Cores Terminal Box 1 Inlet 2 Outlets Cable Glands
OEM
OEM
Provide custom product specifica-tions, icons, logo, packaging.
Type
Indoor Outdoor
Installation Way
Wall mounted Pole mounted
Distribution
Plugin PLC Splitter No PLC Splitter
Max Capacity
12
Online consultationSend email
Product list FAQ Reviews Resources
New

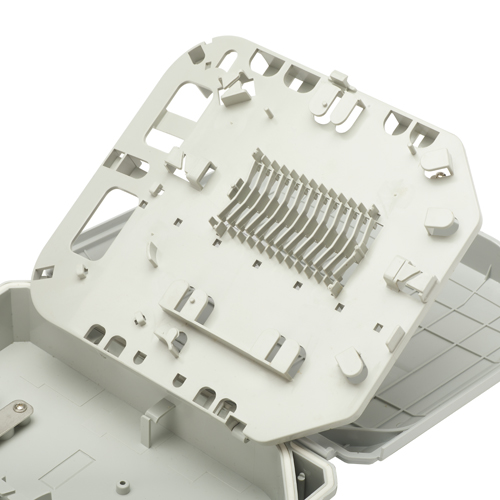

SS-12Cores-005A 12 cores terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
BESTSELLERS
PRODUCT SPECIFICATIONS
  • It is used for different kinds of modules and applied to the working area subsystem.
  • wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution...etc all in one.
  • Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
  • Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Index Specifications
Size ( L*W*H) 205*180* 50 MM
Application Environment Indoor/Outdoor
Cable type FTTH Cable
Input cable diameter 2 ports for cables from 8 to 13 mm
Drop cable dimension Flat cables：2.0*3.0mm
Tensile strength >50 N
End-use temperature -40~+80℃
Adaptor SC Simplex or LC Duplex
Insertion loss ≤0.2dB  ( 1310nm & 1550nm)
Output 12SC / FC
Max Capacity 12 cores
Splitting 1: 8 plugin PLC Splitter

SCOPE OF APPLICATION
PRODUCT PACKAGING
TECHNICAL DOCUMENT
COMPATIBLE
OEM&ODM SUPPORTED
  • OEM Manufacturer
    SEESUO supports OEM manufacturing by producing products according to the designs and specifications provided by the client. We strictly adhere to commercial confidentiality principles to protect the client's brand and privacy.
  • ODM Manufacturer
    SEESUO has extensive research and development experience and high-quality production management capabilities. We can develop and manufacture products specifically for our clients' brands according to their needs.
  • Customized production
    SEESUO offers highly customized product research and development and manufacturing services with a flexible production model. We are able to meet the small-batch customized production needs of some high-end clients.
  • R&D cooperation
    SEESUO is capable of adapting to the rapidly changing market demands and can collaborate with customers in research and development. We invest resources in R&D to meet customers' specialized requirements and build a strong brand moat.
PRODUCT TESTING
  • function testing
  • compatibility testing
  • industrial production line
  • adaptive testing
  • data rate testing
  • final inspection
OUR FACTORY
Our certificate
