Optical Distribution Frame- C&S Unit
Dimension
600x300x2000 600x300x2200 600x300x2600 840x300x2000 840x300x2200 840x300x2600 Customized
Unit
C&S Unit
Max Capacity
280 Cores 360 Cores 504 Cores 576 Cores 648 Cores 720 Cores 864 Cores
Online consultationSend email
Product list FAQ Reviews Resources
New
Optical Fiber Distribution Frame is the second generation which is newly designed with large capacity. Optical fiber distribution with C&S units suit for the port management of optical fiber distribution equipment. It can be used in two ways: cross connection and direct connection to achieve optic fiber connection, distribution and scheduling.
BESTSELLERS
PRODUCT SPECIFICATIONS
  • Electrolysis plate frame, electrostatic spraying in whole.
  • Cable can entry from front side, full frontal operation.
  • Flexible installation can be mounted against a wall or back.

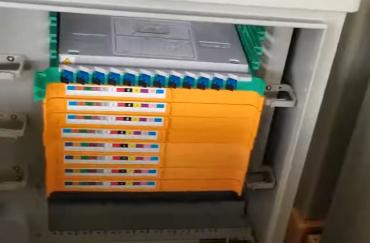

  • Connecting and splicing unit (C&S modular) structure, easy to adjust fusion and distribution units.
  • Available for suitable for strip and non - strip cable.
  • Suitable for inserting installation of SC, FC and ST adaptor.
  • Adaptor and module are 30°in observe, which ensure the bend radius of patch cord and avoid laser burning eyes.
  • The frame is with reliable stripping, protection, fixing and earth devices.
  • Accomplishing scientific arrangement for patch cords with fiber storage units.
  • According to simple adjustment among the units, cable can lead in from top or bottom, and with clear mark for fiber distribution.

Optical Distribution Frame Products List
  ODF with Connecting & Splicing Unit
Dimension H×W×D(mm) Capacity（cores） Quantity （pcs） Max Capacity (cores)
600x300x2000 12 24 280
600x300x2000 12 30 360
600x300x2200 12 42 504
600x300x2600 12 48 576
840x300x2000 12 54 648
840x300x2200 12 60 720
840x300x2600 12 72 864

SCOPE OF APPLICATION
  • Widely used in FTTH access network
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks
PRODUCT PACKAGING
  • Carton + plywood
  • Pallet or wooden carton package for option.
TECHNICAL DOCUMENT
COMPATIBLE
OEM&ODM SUPPORTED
  • OEM Manufacturer
    SEESUO provides tailored OEM productsbased on clients' designs and specs
  • ODM Manufacturer
    SEESUO boasts rich R&D experienceand top-notch production management
  • Customized production
    SEESUO provides tailored product design,development, and flexible manufacturing.
  • R&D cooperation
    SEESUO adapts swiftly to market changescollaborating with customers in R&D
PRODUCT PROBLEM
  • Is the installation of an ODF complex, and what expertise is required?
    ODF installation requires fiber management expertise due to the delicate nature of fiber connections, but it is relatively straightforward for trained professionals. Basic tools like splicing kits and cable organizers may be needed, and following best practices helps prevent damage to connections, ensuring network stability and longevity.
  • What materials are commonly used to build an ODF, and how do they impact durability?
    ODFs are typically made from durable metals such as steel or aluminum, providing both strength and resistance to corrosion. High-quality materials ensure that the ODF can withstand environmental stress and handle the weight of numerous cables, making it a reliable choice for long-term installations in data centers or telecom environments.
  • Can an ODF be seamlessly integrated with existing network equipment, and how does it improve efficiency?
    Yes, an ODF is designed for easy integration with network equipment such as routers, switches, and patch panels. By providing a centralized point for fiber connections, it optimizes cable management, reduces clutter, and simplifies network reconfiguration, thus enhancing overall operational efficiency and maintenance accessibility.
PRODUCT TESTING
  • Conductivity Testing
  • Protection Testing
  • Flexibility Testing
  • Resistance Testing
  • Tensile Testing
  • Attenuation Testing
  • Security Testing
  • Expansion Testing
  • Thermal Testing
  • Resistance Testing
