SS-OMM-9023 Handheld Optical Multi-meter Integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit. It can also provide data storage and upload functions. It is widely used in installation, measurement and maintenance of DDN, Telecom and CATV networks.
BESTSELLERS
PRODUCT SPECIFICATIONS
Features
Specifications
- Users could write their own software by the communication protocol provided
- Automatic wavelength of light source switching
- Frequency identification.
- Simple function mode switching
- High stability of the output power
- Data storage function, up to 1000 test records
- USB communication port for saved testing records download
- Alkaline Battery and Mini USB Adapter for power supply
Specifications
| Type | SS-OMM-9023A | SS-OMM-9023C |
| Optical Power Meter Module | ||
| Detector Type | InGaAs | |
| Measurement Range(dBm) | -70~+6 | -50~+26 |
| Rosolution(dB) | 0.01 | |
| Uncertainty | ≤±0.25 | |
| linearity (dB) | ≤±0.1 | |
| Frequency ID Range（Hz） | ＜10K | |
| Optical Light Source Module | ||
| Wavelengths(nm) | 1310/1550(other wavelengths can be optional) | |
| Typical Ouput Power(dBm) | -5 | |
| Output Stability | ≤0.1 | |
| Modulation Frequencies(Hz) | CW,270,1K,2K | |
| General Specifications of Multi Meter | ||
| Power Supply | 3 pcs 1.5V Alkaline Batteries/Mini USB 5V Adapter | |
| Battery Operating Time(h) | ≥50 (Both Power Meter and Light Source are working) | |
| ≥200(Only Power Meter is working) | ||
| Auto-off time (min) | 10 | |
| Communication Port | Mini USB | |
| Operating Temperature(℃) | -10~+60 | |
| Storage Temperature(℃) | -25~+70 | |
| Dimension(mm) | 175X90X44.5 | |
| Weight (g, without batteries) | 265 | |
SCOPE OF APPLICATION
- Telecom Maintenance
- CATV Maintenance
- DDN Maintenance
- Fiber Optic lab testing
- Other Fiber Optic Measurements
PRODUCT PACKAGING
TECHNICAL DOCUMENT
SS-10G-SFP-PP
DownloadCOMPATIBLE
OEM&ODM SUPPORTED
-
OEM ManufacturerSEESUO provides tailored OEM productsbased on clients' designs and specs -
ODM ManufacturerSEESUO boasts rich R&D experienceand top-notch production management -
Customized productionSEESUO provides tailored product design,development, and flexible manufacturing. -
R&D cooperationSEESUO adapts swiftly to market changescollaborating with customers in R&D
PRODUCT PROBLEM
PRODUCT TESTING
-
Conductivity Testing -
Protection Testing -
Flexibility Testing -
Resistance Testing -
Tensile Testing -

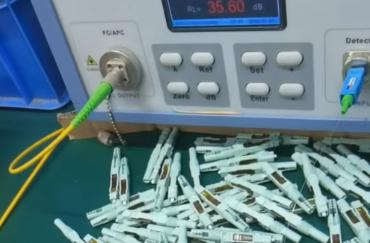

Attenuation Testing -
