Optical Transceivers for Cisco SG550XG-24F-K9-EU Switch
2016-11-25
Cisco 550x Switch SFP Switch Type Of Tutorial

Cisco SG550XG-24F-K9-EU Switch Overview

SG550XG-24F-K9-EU belongs to the Cisco Catalyst 550x Series Switches; it’s an ideal product for Small Business. The Cisco 550X Series Stackable Managed Switches are the next-generation stackable managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. These switches incorporate fan and power hardware redundancy, increasing overall network availability. The Cisco 550XG models provide 16, 24, or 48 ports of 10 Gigabit Ethernet with both copper and fiber connection options, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.

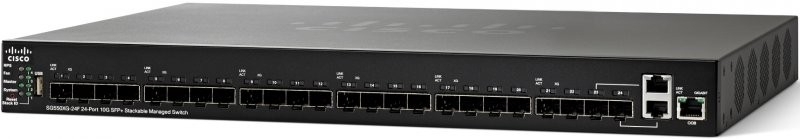

Cisco SG550XG-24F-K9-EU Switch

Cisco SG550XG-24F-K9-EU Switch Parameters

Device Type
Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Desktop, rack-mountable
Subtype
10 Gigabit Ethernet
Ports
22 x 10 Gigabit SFP+ + 2 x combo 10GBase-T
Performance
Forwarding performance (64-byte packet size): 357.12 Mpps ¦ Switching capacity: 480 Gbps
Capacity
VLANs supported: 4094 ¦ IPv4 routes (static): 8000 ¦ IPv6 routes (static): 4000 ¦ ACL rules: 2000 ¦ QoS hardware queues: 8
MAC Address Table Size
16K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
RIP, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR
Remote Management Protocol
SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP
Features

Flow control, DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support,

DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast

Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP)

support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol

(VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access

Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI),

STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation

Control Protocol (LACP), Port Security, IP-MAC binding, DHCP client, Energy Efficient Ethernet,

Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic Attribute

Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS),

802.1x authentication, 16MB packet buffer, Type of Service (ToS), DiffServ Code Point (DSCP) support,

IP source guard, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP)

Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Power
AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)
44 cm x 35 cm x 4.4 cm
Weight
4.16 kg
Localisation
Europe

Optical Transceivers for Cisco SG550XG-24F-K9-EU Switch

Based on the SFP (optical module form factor) Gigabit Ethernet ports accommodate range SFP (optical module form factor) optical transceivers, including Cisco 10GBASE-SR, 10GBASE-LRM, 10GBASE-LR, 10GBase-ER, 10GBASE-ZR/ZW, DAC Twinax Cable. For more information on these Cisco optical transceivers, please check the following table.
MFG Part number
Description
Price
SFP-H10GB-CU1M
Cisco SFP-H10GB-CU1M Compatible 10G SFP+ DAC Twinax Cable (1-meter, passive, SFP+ to SFP+, 30AWG)

SFP-H10GB-CU3M
Cisco SFP-H10GB-CU3M Compatible 10G SFP+ DAC Twinax Cable (3-meter, passive, SFP+ to SFP+, 30AWG)

SFP-H10GB-CU5M
Cisco SFP-H10GB-CU5M Compatible 10G SFP+ DAC Twinax Cable (5-meter, passive, SFP+ to SFP+, 24AWG)

SFP-10G-SR
Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver
US$16.00
SFP-10G-LRM
Cisco SFP-10G-LRM Compatible 10GBASE-LRM SFP+ 1310nm 220m DOM Transceiver
US$32.55
SFP-10G-LR
Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Transceiver
US$32.55
SFP-10G-ER
Cisco SFP-10G-ER Compatible 10GBase-ER SFP+ 1550nm 40km Transceiver Module
US$153.45
SFP-10G-ZR
Cisco SFP-10G-ZR Compatible 10GBASE-ZR/ZW and OTU2e SFP+ 1550nm 80km DOM Transceiver
US$339.45
DWDM SFP+
10G SFP+ DWDM 40km Transceiver CH17~CH61 LC SM Duplex DDM Optical Module
US$260.40
SFP-H10GB-CU1-5M
Cisco SFP-H10GB-CU1-5M Compatible 10G SFP+ DAC Twinax Cable (1.5-meter, passive, SFP+ to SFP+, 30AWG)

SFP-H10GB-CU2M
Cisco SFP-H10GB-CU2M Compatible 10G SFP+ DAC Twinax Cable (2-meter, passive, SFP+ to SFP+, 30AWG)

SFP-H10GB-CU2-5M
Cisco SFP-H10GB-CU2-5M Compatible 10G SFP+ DAC Twinax Cable (2.5-meter, passive, SFP+ to SFP+, 30AWG)

SFP-H10GB-ACU7M
Cisco SFP-H10GB-ACU7M Compatible 10G SFP+ DAC Twinax Cable (7-meter, active, SFP+ to SFP+, 30AWG)

SFP-H10GB-ACU10M
Cisco SFP-H10GB-ACU10M Compatible 10G SFP+ DAC Twinax Cable (10-meter, active, SFP+ to SFP+, 28AWG)

SFP-10G-AOC1M
Cisco SFP-10G-AOC1M Compatible 10G SFP+ AOC (1-meter, SFP+ to SFP+)

SFP-10G-AOC2M
Cisco SFP-10G-AOC2M Compatible 10G SFP+ AOC (2-meter, SFP+ to SFP+)

SFP-10G-AOC3M
Cisco SFP-10G-AOC3M Compatible 10G SFP+ AOC (3-meter, SFP+ to SFP+)

SFP-10G-AOC5M
Cisco SFP-10G-AOC5M Compatible 10G SFP+ AOC (5-meter, SFP+ to SFP+)

SFP-10G-AOC7M
Cisco SFP-10G-AOC7M Compatible 10G SFP+ AOC (7-meter, SFP+ to SFP+)

SFP-10G-AOC10M
Cisco SFP-10G-AOC10M Compatible 10G SFP+ AOC (10-meter, SFP+ to SFP+)

SFP-10G-BXD-I
Cisco SFP-10G-BXD-I Transceiver Module Compatible 10G BIDI SFP+ 1330nm TX/1270nm RX 10km
US$60.45
SFP-10G-BXU-I
Cisco SFP-10G-BXU-I Transceiver Module Compatible 10G WDM BIDI SFP+ 1270nm TX/1330nm RX 10km
US$60.45
SFP-10G-BX40D-I
Cisco SFP-10G-BX40D-I Transceiver Module Compatible 10G WDM BIDI SFP+ 1330nm TX/1270nm RX 40km
US$83.70
SFP-10G-BX40U-I
Cisco SFP-10G-BX40U-I Transceiver Module Compatible 10G WDM BIDI SFP+ 1270nm TX/1330nm RX 40km
US$83.70
Note: Cozlink compatible with Cisco optical module. For more information, please feel free to contact us.

How to determine what types of optical transceivers for Cisco switches?

1. Finding the corresponding optical module compatibility matrix via Cisco official website.
2. On the running switches, enter the privileged mode and input # "show idprom interface gi1 / 0/48" command, you can query the optical module model and serial number, If not, try to input other two commands: xuxic or show idprom int g2/6
3. Checking the type and port based on the specification, it can be used as long as it is gigabit SFP optical module interface. But the specific models to be decided according to the actual demand, such as type, the actual use of distance, single-mode or multimode, single fiber or dual fiber etc. Welcome to consult Cozlink engineer.

Summary

The Cisco SG550XG-24F-K9-EU switch features 24 ports of 10 Gigabit SFP+ slots for 10-Gigabit long-range connectivity over fiber for backbone, stacking, or host connectivity. In addition, 2 ports of 10GBase-T copper provide cost-effective, high-speed connectivity to Servers and Storage devices. These switches are compatible with various Gigabit Ethernet SFP optical transceivers. All these fiber optic transceivers are available on Cozlink at really competitive prices. You can expect same day shipping on Cozlink. Not just optical transceivers, you can also find fiber optic pigtails and high speed cables for your choice on Cozlink.
