Optical Transceivers for Cisco WS-C2960C-12PC-L Switch
2016-10-18
SFP Switch Cisco 2960 Switch WS-C2960C-8PC-L Type Of Tutorial

Cisco WS-C2960C-12PC-L Switch Overview

WS-C2960C-12PC-L belongs to the Cisco Catalyst 2960-C Series Switches; this switch is ideal for the office workspace, micro branch office, classroom, cruise ship, and other wiring-constrained environments. Cisco Catalyst compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Gigabit and Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor and in classrooms, hotels, and factories and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.

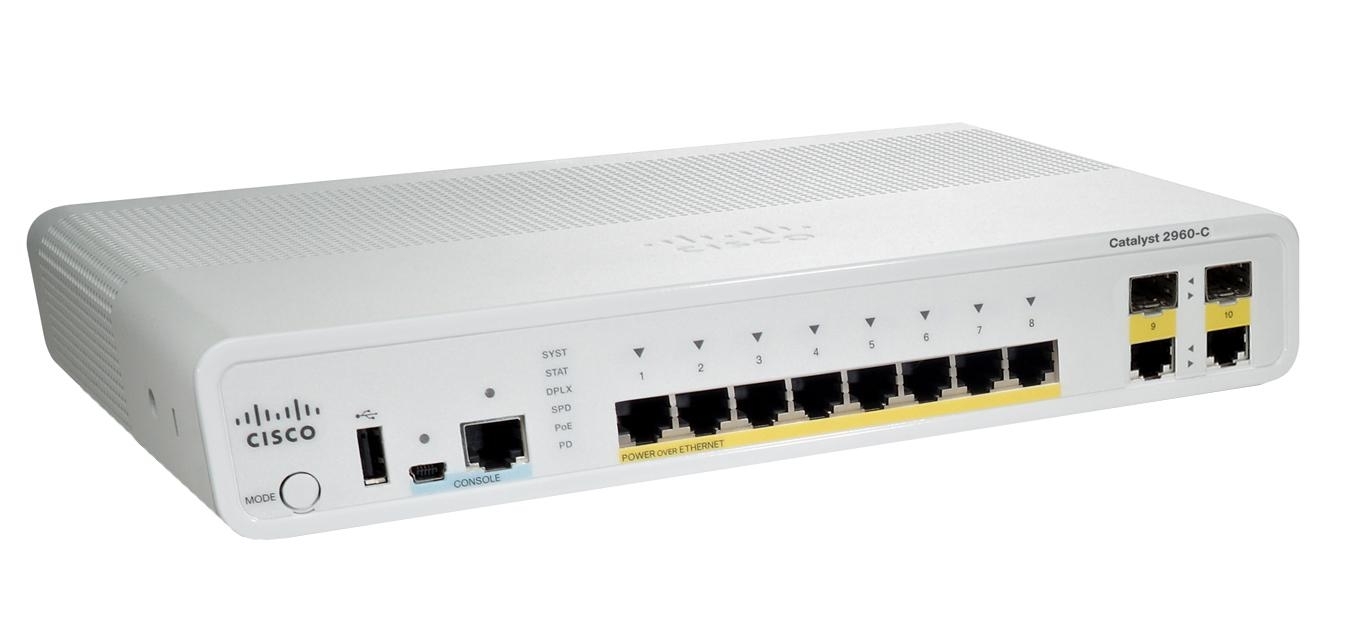

Cisco WS-C2960C-12PC-L Switch

Cisco WS-C2960C-12PC-L Switch Parameters

Device Type
Switch - 12 ports - Managed
Enclosure Type
Desktop, rack-mountable, wall-mountable 1U
Subtype
 Fast Ethernet
Ports
12 x 10/100 (PoE) + 2 x shared Gigabit SFP
Power Over Ethernet (PoE)
PoE
Performance
Forwarding performance: 10 Gbps
Capacity
 Virtual interfaces (VLANs): 255
 Jumbo Frame Support
9018 bytes
Routing Protocol
RIP-1, RIP-2
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Features

DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support,

DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping,

Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support,

Quality of Service (QoS), Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, DHCP relay, Link Aggregation

Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)

Compliant Standards
 IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP)
 Power
AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)
26.9 cm x 23.8 cm x 4.4 cm
Weight
1.86 kg

Optical Transceivers for Cisco WS-C2960C-12PC-L Switch

Based on the SFP (optical module form factor) Gigabit Ethernet ports accommodate range SFP (optical module form factor) optical transceivers, including Cisco 100BASE-FX, 100BASE-LX10, 100BASE-BX-D, 100BASE-BX-U. For more information on these Cisco optical transceivers, please check the following table.
MFG Part number
Description
Price
GLC-FE-100FX
Cisco GLC-FE-100FX Compatible 100BASE-FX SFP 1310nm 2km DOM Transceiver
US$6.98
GLC-FE-100LX
Cisco GLC-FE-100LX Compatible 100BASE-LX10 SFP 1310nm 10km Transceiver
US$6.98
GLC-FE-100BX-D
Cisco GLC-FE-100BX-D Compatible 100BASE-BX-D SFP 1550nm-TX/1310nm-RX 10km DOM Transceiver
US$9.77
GLC-FE-100BX-U
Cisco GLC-FE-100BX-U Compatible 100BASE-BX-U SFP 1310nm-TX/1550nm-RX 10km DOM Transceiver
US$8.84
Note: Cozlink compatible with Cisco optical module. For more information, please feel free to contact us.

How to determine what types of optical transceivers for Cisco switches?

1. Finding the corresponding optical module compatibility matrix via Cisco official website.
2. On the running switches, enter the privileged mode and input # "show idprom interface gi1 / 0/48" command, you can query the optical module model and serial number, If not, try to input other two commands: xuxic or show idprom int g2/6
3. Checking the type and port based on the specification, it can be used as long as it is gigabit SFP optical module interface. But the specific models to be decided according to the actual demand, such as type, the actual use of distance, single-mode or multimode, single fiber or dual fiber etc. Welcome to consult Cozlink engineer.

Summary

The Cisco WS-C2960C-12PC-L is small form-factor Gigabit Ethernet and Fast Ethernet switches designed for deployments outside the wiring closet. These switches support a huge number of Gigabit Ethernet SFP optical transceivers. All these high quality fiber optic transceivers can be found on Cozlink for great prices. Cozlink also make sure to provide its customers same day shipping. You can also choose fiber optic pigtails and high speed cables from a great range of products on Cozlink.
