Optical Transceivers for Cisco SRW2048-K9-EU Switch
2016-10-14
Cisco 300 Switch SRW2048-K9-EU Type Of Tutorial SFP Switch

Cisco SRW2048-K9-EU Switch Overview

SRW2048-K9-EU belongs to the Cisco Catalyst 300 Series Switches; it’s an ideal combination of price, performance, and capabilities in a solution designed specifically for small businesses. The SG300-52, part of the Cisco Small Business line of network solutions, is an affordable managed switch that provides a reliable foundation for your business network. These switches deliver the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco SG300-52 provides the ideal combination of affordability and capabilities for small businesses, and helps you create a more efficient, better-connected workforce.

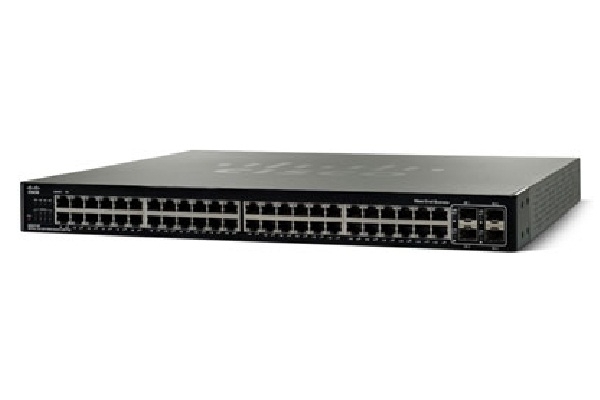

Cisco SRW2048-K9-EU Switch

Cisco SRW2048-K9-EU Switch Parameters

Device Type
Switch - 50 ports - L3 - Managed
Enclosure Type
Desktop 1U
Subtype
Gigabit Ethernet
Ports
50 x 10/100/1000 + 2 x combo Gigabit SFP
MAC Address Table Size
8K entries
Routing Protocol
Static IPv4 routing
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Features

Layer 3 switching, Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring,

DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable,

Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support,Trivial File Transfer

Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping

Compliant Standards
 IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power
AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)
44 cm x 25.7 cm x 4.5 cm
Weight
3.9 kg

Optical Transceivers for Cisco SRW2048-K9-EU Switch

Based on the SFP (optical module form factor) Gigabit Ethernet ports accommodate range SFP (optical module form factor) optical transceivers, including Cisco 1000BASE-T, 1000BASE-SX, 1000Base-LX/LH, 1000BASE-ZX, 1000BASE-BX-U, 1000BASE-BX-D. For more information on these Cisco optical transceivers, please check the following table.
MFG Part number
Description
Price
GLC-T
Cisco GLC-T Compatible 1000BASE-T SFP Copper RJ-45 100m Transceiver
US$13.02
GLC-TE
Cisco GLC-TE Transceiver Module Compatible 1000M SFP Copper 100m
US$13.02
GLC-SX-MM
Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m Transceiver
US$6.00
GLC-LH-SM
Cisco GLC-LH-SM Compatible 1000Base-LX/LH SFP 1310nm 10km Transceiver
US$7.00
GLC-ZX-SM
Cisco GLC-ZX-SM Compatible 1000BASE-ZX SFP 1550nm 70km Transceiver
US$24.00
GLC-BX-U
Cisco GLC-BX-U Compatible 1000BASE-BX-U SFP 1310nm-TX/1490nm-RX 10km DOM Transceiver
US$9.00
GLC-BX-D
Cisco GLC-BX-D Compatible 1000BASE-BX-D SFP 1490nm-TX/1310nm-RX 10km DOM Transceiver
US$12.00
CWDM SFP
1.25G CWDM SFP 1270~1450nm 120km LC DDM Optical Transceiver
US$55.00
GLC-SX-MMD
Cisco GLC-SX-MMD Compatible 1000BASE-SX SFP 850nm 550m DOM Transceiver
US$6.00
GLC-LH-SMD
Cisco GLC-LH-SMD Compatible 1000Base-LX/LH SFP 1310nm 10km DOM Transceiver
US$7.00
GLC-ZX-SMD
Cisco GLC-ZX-SMD Compatible 1000BASE-ZX SFP 1550nm 70km DOM Transceiver
US$24.00
Note: Cozlink compatible with Cisco optical module. For more information, please feel free to contact us.

How to determine what types of optical transceivers for Cisco switches?

1. Finding the corresponding optical module compatibility matrix via Cisco official website.
2. On the running switches, enter the privileged mode and input # "show idprom interface gi1 / 0/48" command, you can query the optical module model and serial number, If not, try to input other two commands: xuxic or show idprom int g2/6
3. Checking the type and port based on the specification, it can be used as long as it is gigabit SFP optical module interface. But the specific models to be decided according to the actual demand, such as type, the actual use of distance, single-mode or multimode, single fiber or dual fiber etc. Welcome to consult Cozlink engineer.

Summary

The Cisco SRW2048-K9-EU Switches are available with 50 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create exactly the right network foundation for your business. This high quality Cisco switch works with a number of Gigabit Ethernet SFP optical transceivers. You can easily find these high quality fiber optic transceivers at very competitive rates on Cozlink. What makes this even better that Cozlink also offer you a wide range of patch cords, fiber optic pigtails and high speed cables to choose from and Cozlink also ensure that you get the same day shipping.
