Cisco X2-10GB-ER Overview

10GBASE-ER X2 Module. This Cisco X2-10GB-ER compatible X2 transceiver provides 10GBase-ER throughput up to 40km over single-mode fiber (SMF) at a wavelength of 1550nm using a SC connector. It is guaranteed to be 100% compatible with the equivalent Cisco transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. All of our transceivers are Trade Agreements Act (TAA) compliant.

Cisco X2-10GB-ER

Main Features



  • X2 transceiver module
  • 10 Gigabit Ethernet
  • 10GBase-ER
  • SC single mode
  • up to 24.9 miles
  • 1550 nm



Cisco X2-10GB-ER List Price

Product  List Price (USD) Description
X2-10GB-ER $10,000.00 10GBASE-ER X2 Module
CZT-X2-ER $418.50  Cisco X2-10GB-ER Transceiver Module Compatible 10G X2 1550nm 40km

Cisco X2-10GB-ER Datasheet PDF

Cisco X2-10GB-ER Specs

Cable
Connectivity Left Connector Type:  SC single mode
Interface Provided
Connector Qty:  X 2
Connector Type: SC single mode
Qty:  1
Type:  Ethernet 10GBase-ER
Networking
Cabling Type: Ethernet 10GBase-ER
Connectivity Technology:  Wired
Data Link Protocol: 10 Gigabit Ethernet
Data Transfer Rate:  10 Gbps
Form Factor:  Plug-in module
Max Transfer Distance: 24.9 miles
Optical Wave Length: 1550 nm
Type:  X2 transceiver module
Power Device
Type:  None
Slot Provided
Type: None
Slot Required
Total Qty: 1
Type: X2
Connectors (for SD)
Left Connector Type:  SC single mode

Cisco X2-10GB-ER Compatibility matrix

Cisco X2-10GB-ER is supported on a wide range of Cisco equipment.

Cisco 7600 WS-X6708-10G-3C

Cisco 7600 RSP720-10GE

Cisco WS-C3560E-24TD

Cisco WS-C3560E-48TD

Cisco WS-C3560E-48PDF

Cisco WS-C3560E-12SD

Cisco WS-C3750E-24PD

Cisco WS-C3750E-48PD

Cisco 4500 WS-X4516-10GE

Cisco 4500 WS-X45-SUP6L-E

Cisco 4500 WS-X4606-X2-E

Cisco 4900 WS-C4928-10GE

Cisco WS-X4904-10GE

Cisco 4900 ME-4924-10GE

Cisco 6500 VS-S720-10G-3CXL

Cisco 6500 WS-X6716-10G-3CXL

Cisco 6500 WS-X6708-10G-3CXL

Cisco 6500 VS-S720-10G-3CXL

Cisco 6500 WS-X6708-10G-3CXL

Cisco 6500 WS-X6716-10G-3CXL

Cisco 7600 WS-X6708-10G-3CXL

Cisco Nexus 7000 N7K-M108X2-12L

Cisco WS-C3560E-24PD

Cisco WS-C3560E-48PD

Cisco WS-C3560E-12D

Cisco WS-C3750E-24TD

Cisco WS-C3750E-48TD

Cisco WS-C3750E-48PDF

Cisco 4500 WS-X4013+10GE

Cisco 4500 WS-X45-SUP6-E

Cisco 4900 WS-C4948-10GE

Cisco WS-C4900M

Cisco WS-X4908-10GE

Cisco 6500 VS-S720-10G-3C

Cisco 6500 WS-X6716-10G-3C

Cisco 6500 WS-X6708-10G-3C

Cisco 6500 VS-S720-10G-3C

Cisco 6500 WS-X6708-10G-3C

Cisco 6500 WS-X6716-10G-3C

Apart from introducing Cisco X2-10GB-ER in detail, we will also briefly introduce some other Cisco X2 models to different viewers of different demands. The following tables shows the cabling specifications and optical transmit and receive specifications, so that let buyers to know how to choose the best modules and cable type.

X2 Port Cabling Specifications

X2 Port Cabling Specifications

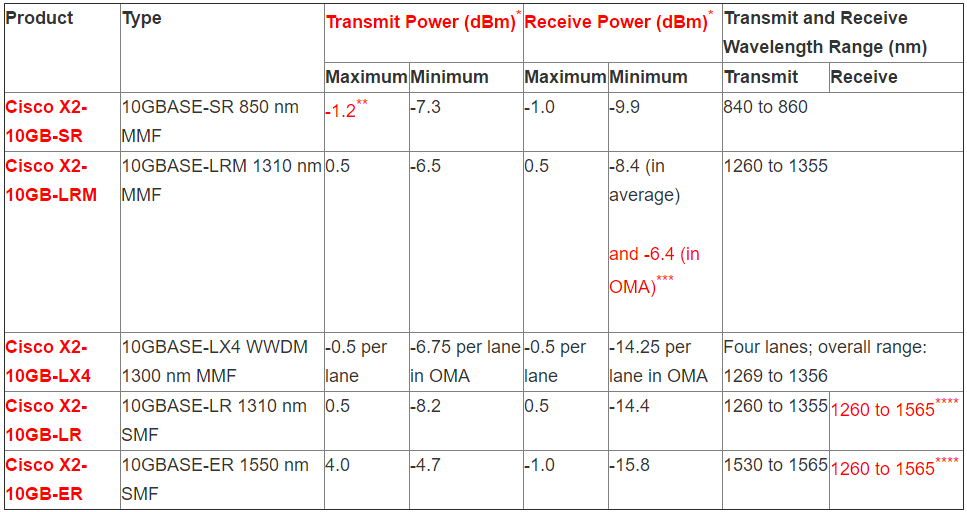

Optical Transmit and Receive Specifications

Optical Transmit and Receive Specifications
All the collected information above belongs to original author, if infringement, please contact us immediately, we will solve this immediately.


Cisco X2-10GB-ER Compatible 10GBASE-ER X2 Transceiver Module (SMF, 1550nm, 40km, SC, DOM)

Q:Is the maximum distance 40km?

A:It's a 10G X2 Transceiver, its maximum distance can up to 40Km. I hope this helps.

Q:How hot this one runs?

A:Its commercial Temperature Range is 0 to 70°C (32 to 158°F).

Q:What type of connector is X2 10GB SR?

A:The Cisco X2-10GB-SR compatible X2 transceiver provides 10GBase-SR throughput up to 300m over OM3 MMF using a wavelength of 850nm via a SC duplex connector.

Features & Specifications

  • Form Factor: X2

  • Device Type: Transceiver module

  • Interface (Bus) Type: Plug-in module

  • Connectivity Technology: Wired

  • Application: 10GBASE-ER

  • Data Transfer Rate: 10Gbps

  • Wavelength: 1550nm

  • Max Distance: 40km

  • Fiber Type: SMF

  • Connector: DuplexSC

  • DDM: With DDM

  • Operating Temperature: 0~70 °C

  • Compliant with MSA X2 Specification

This Cisco® X2-10GB-ER compatible X2 transceiver provides 10GBase-ER throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1550nm via a SC connector. It is guaranteed to be 100% compatible with the equivalent Cisco® transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
