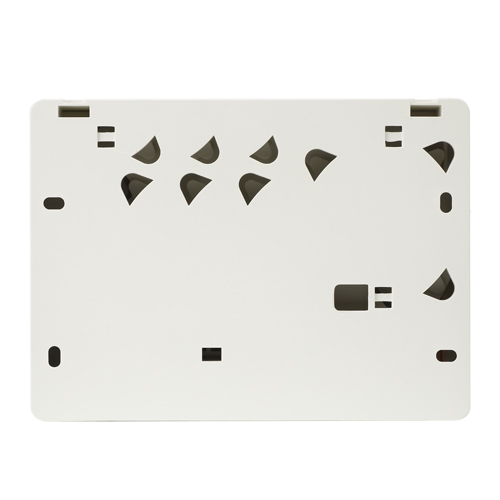

4 Cores Patch Panel Indoor Terminal Box
Online consultation
Send email
SS-4Cores-101A 4 cores FTTH model of Fiber Optic Terminal Box is a newly developed by our company for application of FTTH. The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH.
BESTSELLERS
PRODUCT SPECIFICATIONS
- This box could be used for wall-mounted and rack-mounted applications.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
- The base and cover of the box adopts “self-clip” method, which is easy and convenient to open and close. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Could be used for SC and FC adaptors.
| Index | Specifications |
| Size ( L*W*H) | 150*110*33 MM |
| Fiber diameter | 125μm (G652D & G657A ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Single mode & duplex mode |
| Tensile strength | >50 N |
| Environmental temperature | -25~+40℃ |
| Adaptor | SC Simplex or LC Duplex |
| Insertion loss | ≤0.2dB (1310nm & 1550nm) |
| Output | 4 SC / FC |
| Max Capacity | 4 cores |
SCOPE OF APPLICATION
PRODUCT PACKAGING
TECHNICAL DOCUMENT
SS-10G-SFP-PP
DownloadCOMPATIBLE
OEM&ODM SUPPORTED
-
OEM ManufacturerSEESUO provides tailored OEM productsbased on clients' designs and specs -
ODM ManufacturerSEESUO boasts rich R&D experienceand top-notch production management -
Customized productionSEESUO provides tailored product design,development, and flexible manufacturing. -
R&D cooperationSEESUO adapts swiftly to market changescollaborating with customers in R&D
PRODUCT PROBLEM
-
How does the 4 Cores Patch Panel help manage cable organization in complex network setups?The 4 Cores Patch Panel improves cable organization by providing designated ports for each connection, which reduces clutter and simplifies cable management. This organization helps prevent tangling and signal interference, making maintenance and troubleshooting more efficient.
-
What installation considerations are necessary for optimal performance of the 4 Cores Patch Panel?Proper alignment, secure mounting, and accessible positioning are key installation factors for the 4 Cores Patch Panel. These steps ensure it integrates well with existing systems and maintains stable, high-quality connections in demanding environments.
-
What durability features does the 4 Cores Patch Panel offer for continuous use?Constructed with robust materials, the 4 Cores Patch Panel is designed for extended use, providing resistance to physical wear and environmental factors. This durability ensures reliable performance over time, even in high-traffic or high-demand network conditions.
PRODUCT TESTING
-
Conductivity Testing -
Protection Testing -
Flexibility Testing -
Resistance Testing -
Tensile Testing -
Attenuation Testing -
Security Testing -
Expansion Testing -
Thermal Testing -
